Name: Sodium-ion battery modules
Brand: Tynergy

Made to last. Engineered to perform.

Superior chemistry that keeps delivering.

Decades, Not Years.

Exponentially longer cycle life to maximize your investment.

30+ Year asset life
Non-Flammable & Safe Chemistry

Safe for indoor use with few limitations.

Zero Thermal runaway
From Arctic Cold to Desert Heat

Operates from −40 °C to 70 °C without heat tracing.

−40 °C to 70 °C Operating range
Military‑Grade Tested

Sodium-ion battery cells with a proven track record in rugged military environments.

Military and government

Next-generation energy storage.

Highest-performing energy storage that endures long past when others have been replaced.

Year asset life: 30+
Thermal runaway. Non-flammable.: Zero
Recyclable at end of life: 100%

Tynergy sodium-ion energy storage systems. Source: Tynergy product information, October 2026.

Product range

From one module to a 1 MWh container.

Five products on one sodium-ion chemistry, for homes, telecom sites, industry and the grid.

White sodium-ion battery packs on pallets on a factory floor

Module

Sodium-ion battery modules

The building block of every Tynergy storage system.

Rated energy per pack: 13.02 kWh
Cell cycle life: 5,000+ cycles; at 25 °C and 0.5C, to 70% state of health
Working voltage: 62 V

Configuration	1P20S
Voltage range	40–76 V
Rated capacity	210 Ah
Standard charge and discharge current	0.5C
Self-discharge	Below 3% a month

Full specifications 22 values

Battery pack
Rated energy	13.02 kWh
Configuration	1P20S
Working voltage	62 V
Voltage range	40–76 V
Rated capacity	210 Ah
Standard charge and discharge current	0.5C
Self-discharge	Below 3% a month
Cooling	Air
Protection rating	IP20
Dimensions (L × W × H)	464 × 923 × 230 mm
Weight	128 kg

Sodium-ion cell
Cell type	Sodium-ion
Rated voltage	3.1 V
Rated capacity	210 Ah at 25 ± 3 °C, 0.5C
Voltage range	2.0–3.85 V
Cycle life	5,000 cycles or more at 25 °C and 0.5C, to 70% state of health
Continuous current	105 A
Maximum current	210 A
Dimensions (W × D × H)	173 × 71.4 × 207.1 mm
Weight	4.90 ± 0.15 kg

Sodium-ion battery, Group 27
Energy	2,400 Wh
Voltage	12 V DC

Enquire

Rack

Rack batteries

Modules in a standard 19-inch rack for telecom, commercial and industrial sites.

Energy: 13.5 kWh
Voltage: 48 V DC
Format: 19-inch rack

Enquire

Concept image

Home and light commercial

TYN-HOME energy storage system

A sodium‑ion battery, an inverter and a charger in one cabinet. It powers larger homes or small commercial operations.

Sodium-ion battery: 15 or 25 kWh
Inverter: 12 kW
Charger: 7 kW

Use	Residential or light commercial
Marking	CE
Warranty	25 years

Non-flammable and safe chemistry. Safe for indoor use with few limitations.
Connects to the home through a 50 A, 240 V plug and installs in hours, not days.
Post-OBBB compliant: domestic content and FEOC.

Enquire

White 20-ft Tynergy sodium-ion storage container

Concept image

20-ft container

20‑ft containerized energy storage system (ESS‑20 ft)

Sodium-ion storage in a standard 20‑ft container, available for large-scale grid sites.

Energy: 1.15 MWh
Power: 120 kW
Voltage: 480 V

Container	20‑ft
Dimensions (L × W × H)	6.1 × 2.44 × 2.59 m

Enquire

40-ft container

1 MWh storage container

Batteries, power conversion and fire protection in one 40-foot container, for grid and industrial sites.

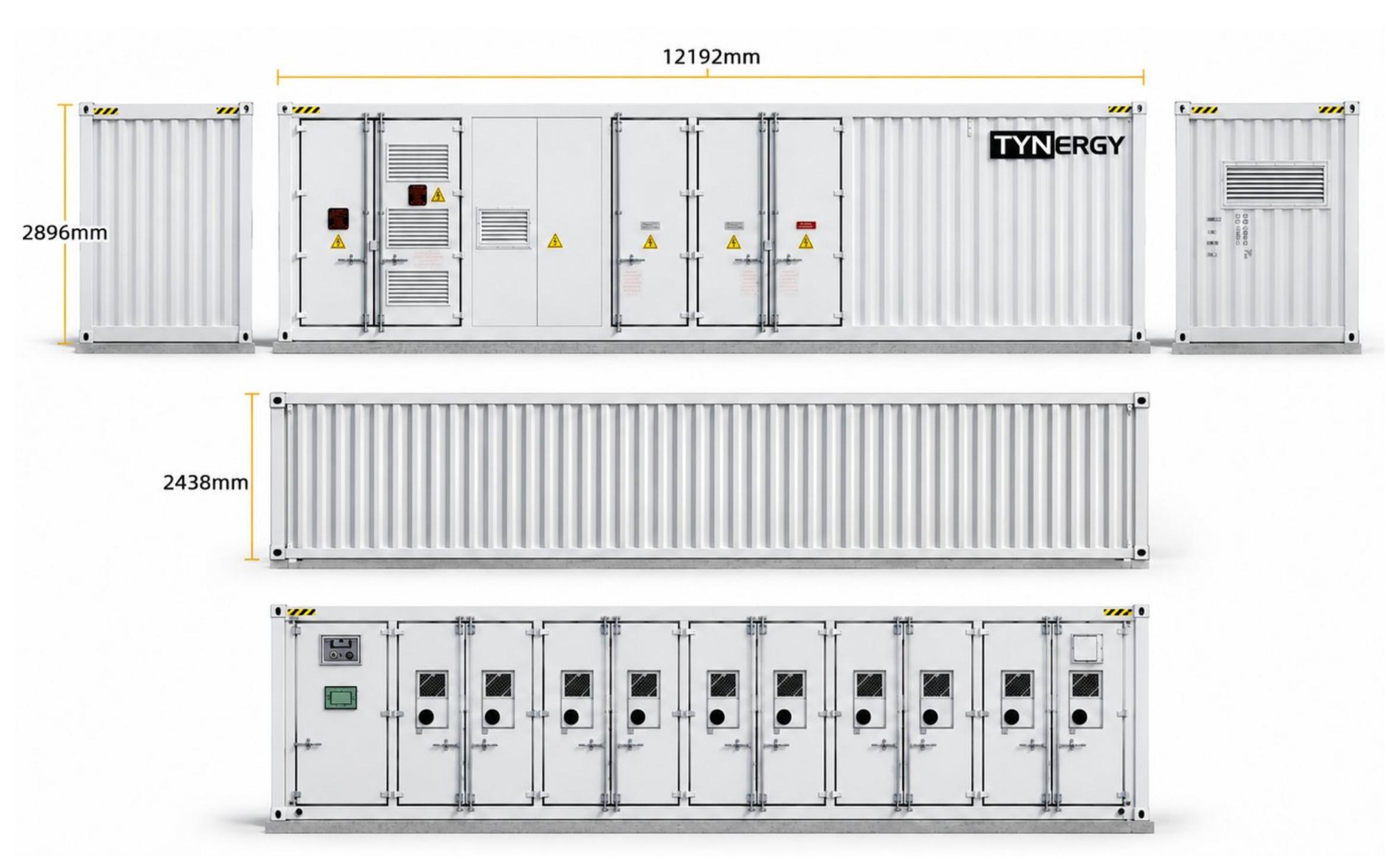

Drawings of the 40-ft container from the side, the top and the ends, with dimensions — Dimensions (L × W × H) 12,192 × 2,438 × 2,896 mm

Energy: 1 MWh
Power conversion: 500 kW
Container: 40 ft

Layered protection

Heat and smoke detection
Aerosol fire suppression
A fire-water inlet for responders
Flood sensing
Access control and an emergency stop

Safety and standards 1 MWh container specifications PDF, 0.96 MB

Enquire

System
Energy	1 MWh
Container	40‑ft ISO container
Dimensions (L × W × H)	12,192 × 2,438 × 2,896 mm
Power conversion system	500 kW hybrid inverter, on-grid and off-grid
AC/DC converter	100 kW
Battery packs	13.02 kWh, 62 V, 210 Ah each
Thermal management	Air conditioning
BMS and EMS communication	RS485, TCP/IP, CAN

Inverter, pack and cell specifications 32 values

Hybrid inverter
Rated output power	500 kW
Maximum output power	550 kVA
Rated voltage	480 V, high-leg delta with split phase
Voltage range	384–552 V
Rated frequency	50/60 Hz
Current distortion (THDi)	Below 3%
Overload capacity, off-grid	110%, long term
Battery voltage range	500–900 V
Maximum battery current	1,128 A
Protection rating	IP21
Cooling	Air
Display	LCD touch screen

Battery pack
Rated energy	13.02 kWh
Configuration	1P20S
Working voltage	62 V
Voltage range	40–76 V
Rated capacity	210 Ah
Standard charge and discharge current	0.5C
Self-discharge	Below 3% a month
Cooling	Air
Protection rating	IP20
Dimensions (L × W × H)	464 × 923 × 230 mm
Weight	128 kg

Sodium-ion cell
Cell type	Sodium-ion
Rated voltage	3.1 V
Rated capacity	210 Ah at 25 ± 3 °C, 0.5C
Voltage range	2.0–3.85 V
Cycle life	5,000 cycles or more at 25 °C and 0.5C, to 70% state of health
Continuous current	105 A
Maximum current	210 A
Dimensions (W × D × H)	173 × 71.4 × 207.1 mm
Weight	4.90 ± 0.15 kg
