Atmospheric water generation

Water from the air

Tynergy atmospheric water generators extract safe drinking water from the water vapour in the air. The grid-independent system reduces greenhouse gas emissions, supports net-zero goals and reduces the need for costly water infrastructure.

Enquire See the range
The EW-3 atmospheric water generator with the Tynergy logo

Daily output

From 26 to 5,300 litres of drinking water a day.

EW-1
26 litres
7 gallons a day
EW-2
114 litres
30 gallons a day
EW-3
1,890 litres
500 gallons a day
EW-4
5,300 litres
1,400 gallons a day

Daily output at 26 °C (80 °F) and 60% relative humidity.

The range

Four units, from a dispenser to commercial scale.

All figures at 26 °C (80 °F) and 60% relative humidity.

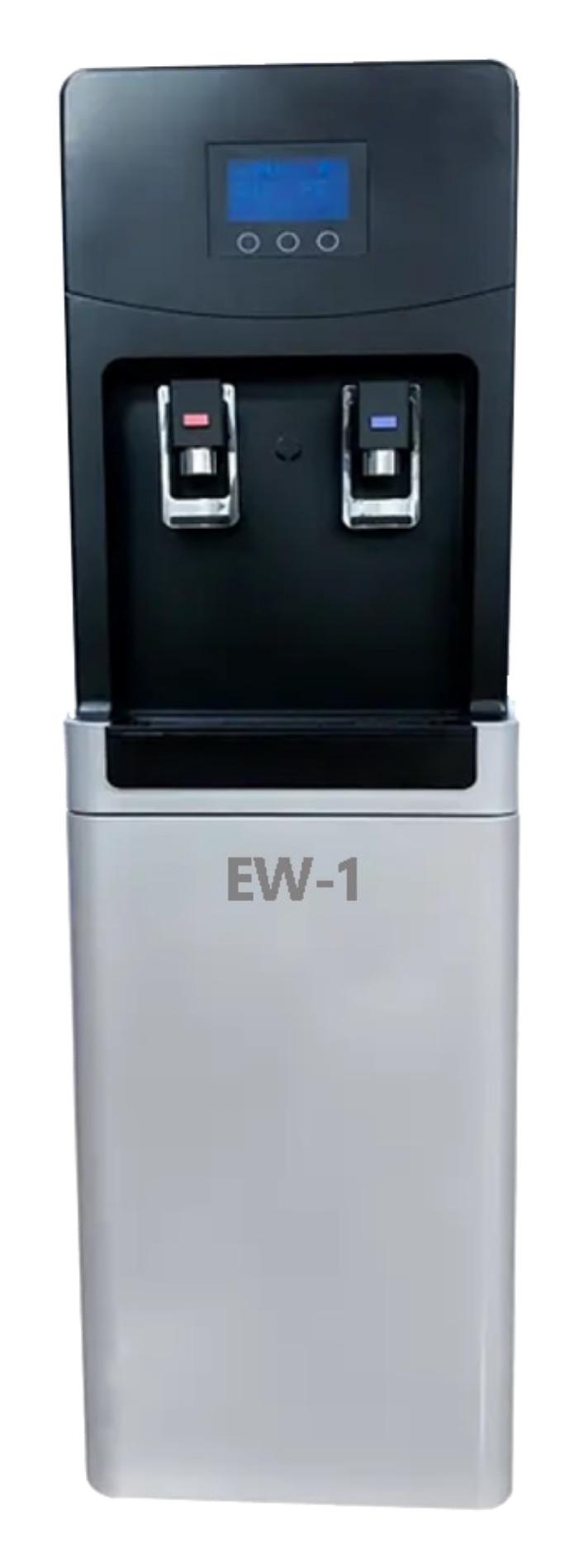

EW-1 atmospheric water generator

Home, office, government and public facilities

EW-1

Plug-and-play drinking water unit for homes, offices and public facilities. Hot and cold water.

Drinking water a day
26 litres (7 gallons)
at 26 °C (80 °F) and 60% relative humidity
Water Hot and cold, preset at 91.6 °C and 6 °C
Dimensions (W × D × H) 37.5 × 30.7 × 115.3 cm
Weight 42 kg
Filters (included) Sediment, pre-carbon, ultra-fine membrane, mineralisation, nano Ceram-PAC and LED-UV
Input power 300 W for water, plus 500 W for heating when used
Full specifications , EW-1 14 values
EW-1
Daily output 26 litres (7 gallons) at 26 °C (80 °F) and 60% relative humidity
Water Hot and cold, preset at 91.6 °C and 6 °C
Use Home, office, government and public facilities
Dimensions (W × D × H) 37.5 × 30.7 × 115.3 cm
Weight 42 kg
Filters (included) Sediment, pre-carbon, ultra-fine membrane, mineralisation, nano Ceram-PAC and LED-UV
Input power 300 W for water, plus 500 W for heating when used
Controls LCD touch screen
Working humidity 10–100% RH
Working temperature 15–45 °C
Power supply AC 110 V 60 Hz or AC 220 V 50 Hz
Refrigerant R410a
Location Indoor use only
Warranty Limited 1-year warranty
Enquire about the EW-1

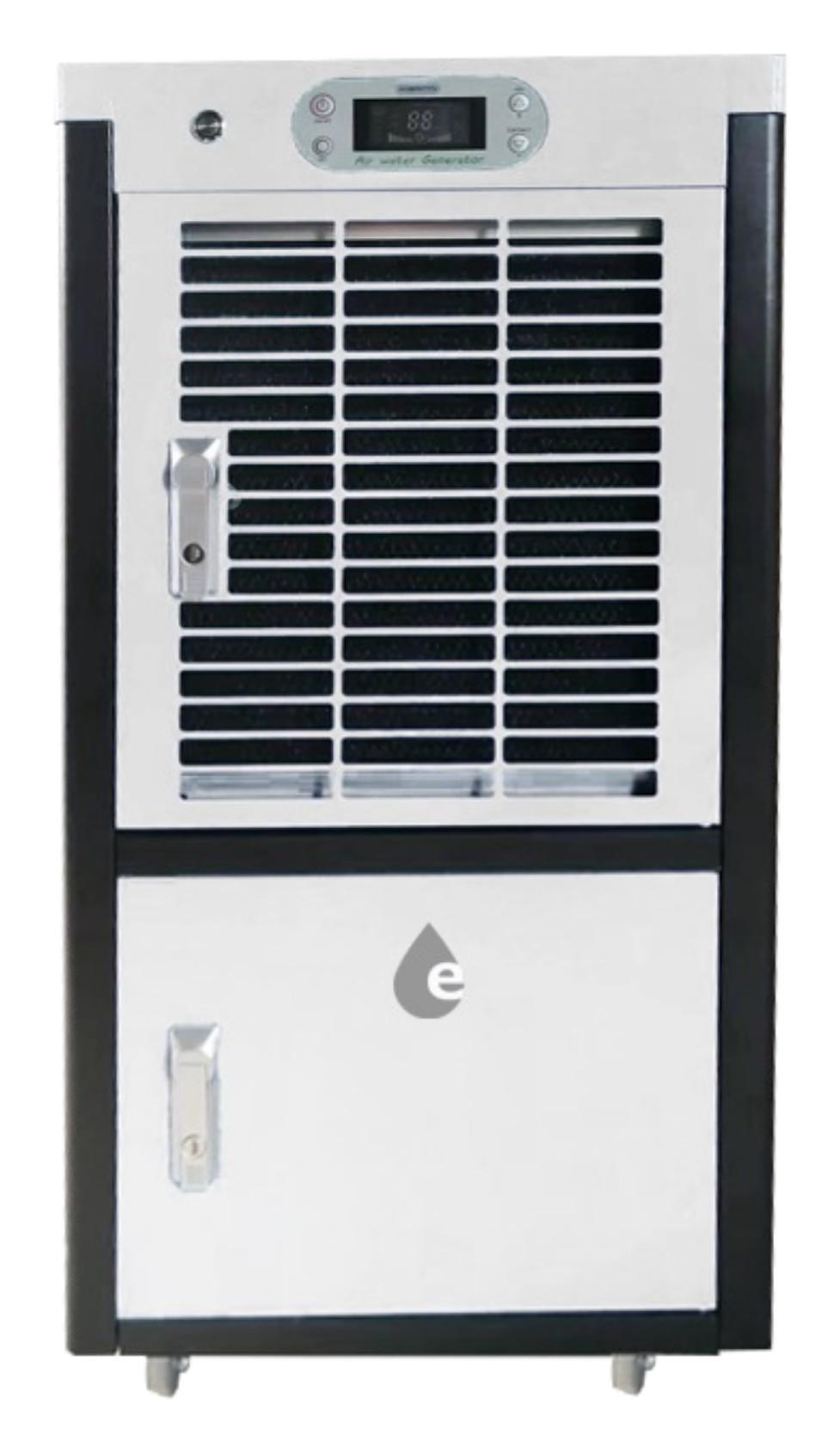

EW-2 atmospheric water generator

Residential and light commercial

EW-2

Plug-and-play drinking water unit for residential and light commercial use. Ambient water.

Drinking water a day
114 litres (30 gallons)
at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Dimensions (W × D × H) 67 × 52 × 110 cm
Weight 70 kg
Input power 1,250 W
Controls LCD touch screen
Full specifications , EW-2 13 values
EW-2
Daily output 114 litres (30 gallons) at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Use Residential and light commercial
Dimensions (W × D × H) 67 × 52 × 110 cm
Weight 70 kg
Input power 1,250 W
Controls LCD touch screen
Working humidity 10–100% RH
Working temperature 15–45 °C
Power supply AC 110 V 60 Hz or AC 220 V 50 Hz
Refrigerant R410a
Location Indoor use only
Warranty Limited 1-year warranty
Enquire about the EW-2

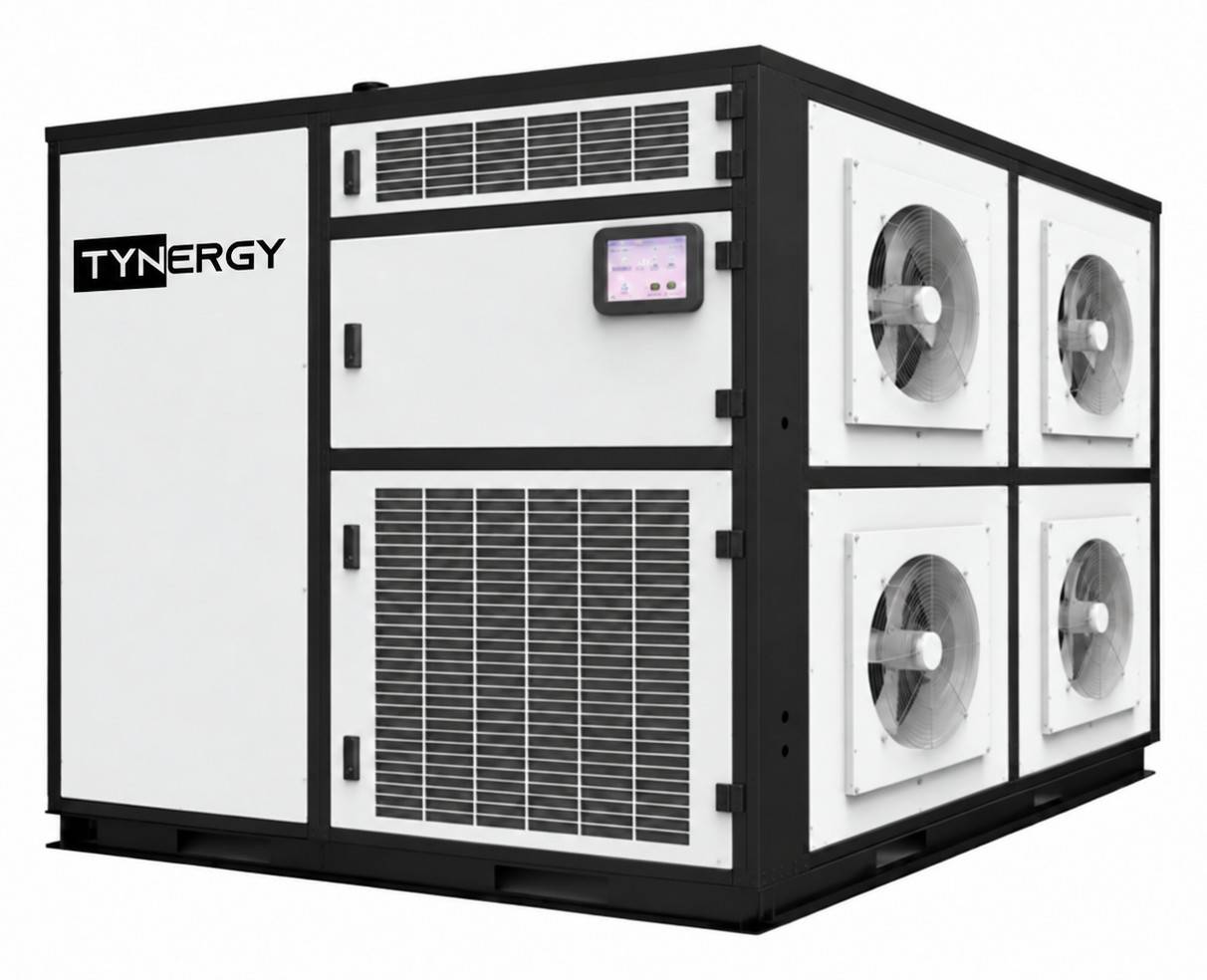

EW-3 atmospheric water generator with the Tynergy logo

Commercial scale

EW-3

Commercial-scale drinking water unit. Ambient water.

Drinking water a day
1,890 litres (500 gallons)
at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Dimensions (W × D × H) 210 × 349 × 209 cm
Weight 2,200 kg
Input power 25 kW
Compressors 4 enclosed vortex compressors
Full specifications , EW-3 13 values
EW-3
Daily output 1,890 litres (500 gallons) at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Use Commercial scale
Dimensions (W × D × H) 210 × 349 × 209 cm
Weight 2,200 kg
Input power 25 kW
Compressors 4 enclosed vortex compressors
Working humidity 10–100% RH
Working temperature 15–45 °C
Power supply AC 110 V 60 Hz or AC 220 V 50 Hz
Refrigerant R410a
Location Indoor use only
Warranty 3-year warranty
Enquire about the EW-3
EW-4 atmospheric water generator with the Tynergy logo

Commercial scale and disaster relief sites

EW-4

Commercial-scale drinking water unit, also for disaster relief sites. Ambient water.

Drinking water a day
5,300 litres (1,400 gallons)
at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Dimensions (W × D × H) 210 × 520 × 209 cm
Weight 3,300 kg
Input power 25 kW
Compressors 4 enclosed vortex compressors
Full specifications , EW-4 13 values
EW-4
Daily output 5,300 litres (1,400 gallons) at 26 °C (80 °F) and 60% relative humidity
Water Ambient
Use Commercial scale and disaster relief sites
Dimensions (W × D × H) 210 × 520 × 209 cm
Weight 3,300 kg
Input power 25 kW
Compressors 4 enclosed vortex compressors
Working humidity 10–100% RH
Working temperature 15–45 °C
Power supply AC 110 V 60 Hz or AC 220 V 50 Hz
Refrigerant R410a
Location Indoor use only
Warranty 3-year warranty
Enquire about the EW-4

Design

Fresh drinking water, with low maintenance.

  • Innovative, proprietary technology

  • Fresh drinking water from the air

  • Low maintenance, with a grid-independent or plug-in design

  • Remote monitoring through an app

  • Cost-efficient and environmentally sustainable

  • Eliminates the need for more than 290,000 plastic bottles over its lifetime

Uses

From offices to relief sites.

  • EW-1 and EW-2

    Homes and offices

    Plug-and-play units for homes, offices and light commercial use. The EW-1 also gives hot and cold water.

  • The range

    Schools and public facilities

    For schools, public facilities, community and government centres, and restaurants.

  • EW-1 to EW-4

    Remote sites and islands

    Drinking water from the air where water access is limited. Each unit can run off the grid as part of an off‑grid system with Tynergy energy storage and solar panels.

  • EW-4

    Emergency supply

    EW-4: commercial scale and disaster relief sites, at 5,300 litres a day.

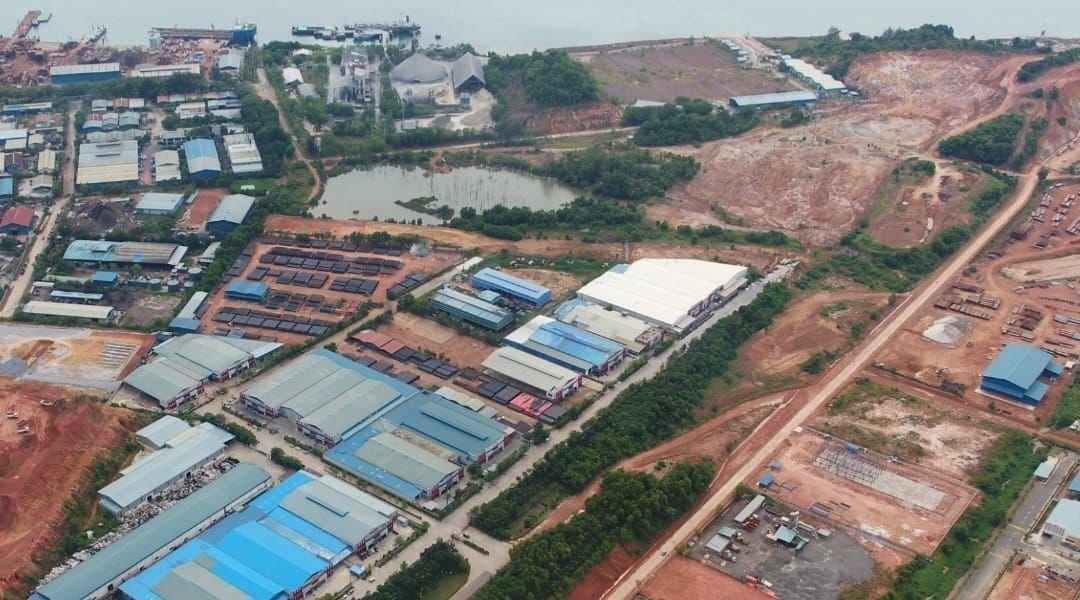

Coast and industrial estate on an island
Batam, Riau Islands, Indonesia

Off the grid

Water, storage and solar as one system.

Each unit can run off the grid as part of an off‑grid system with Tynergy energy storage and solar panels.

TYN-HOME 20-ft container Solar panels
Off-grid system of each unit
Unit Off-grid system
EW-1 The EW-1, a TYN-HOME energy storage system and 3 solar panels.
EW-2 The EW-2, a TYN-HOME energy storage system and 7 solar panels.
EW-3 The EW-3, a 20‑ft containerized energy storage system and 70 solar panels.
EW-4 The EW-4, a 20‑ft containerized energy storage system and 200 solar panels.

Further reading

Newsroom

Introduction to Atmospheric Water Creation and its Potential for Sustainable Energy

20 Mar 2024

Enquiries

Tell us how much water you need.

Share your site, its daily water needs and its power supply. We will match a unit and, if needed, an off-grid system.

Enquire Become a dealer
